Premium 4x4 Accessories & Protection Equipment

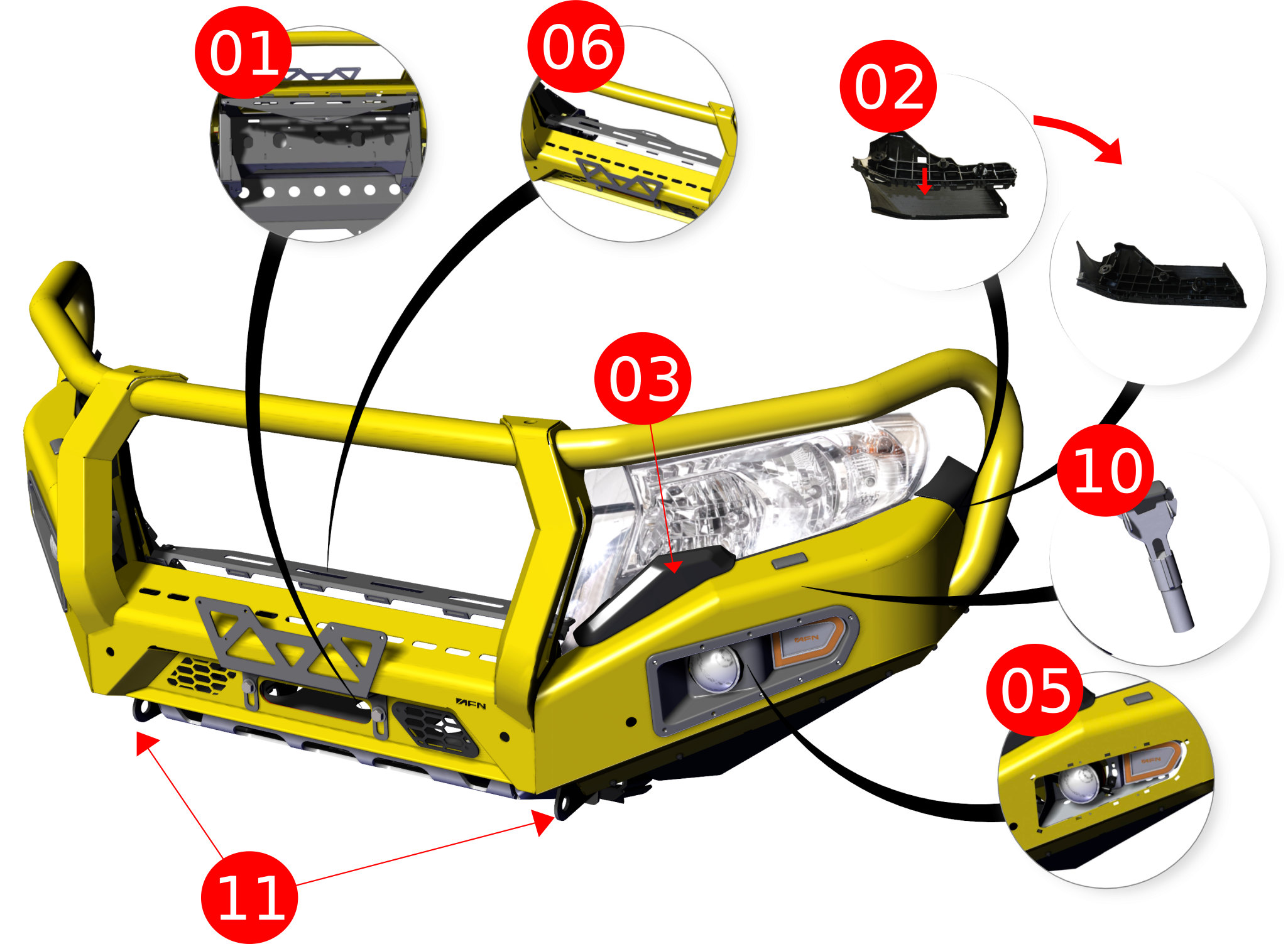

01- It’s a full Bumper replacement Why?
This Bullbar / Bumper includes all the parts needed to make a perfect match between the body and a AFN product.
02- Side Plastic - This Side Plastic clips on the OEM Body mount with the addiction of custom made plastic.
03- Under the Headlight there is a custom made plastic to fill the gap between the AFN Bullbar / Bumper and the Headlight.

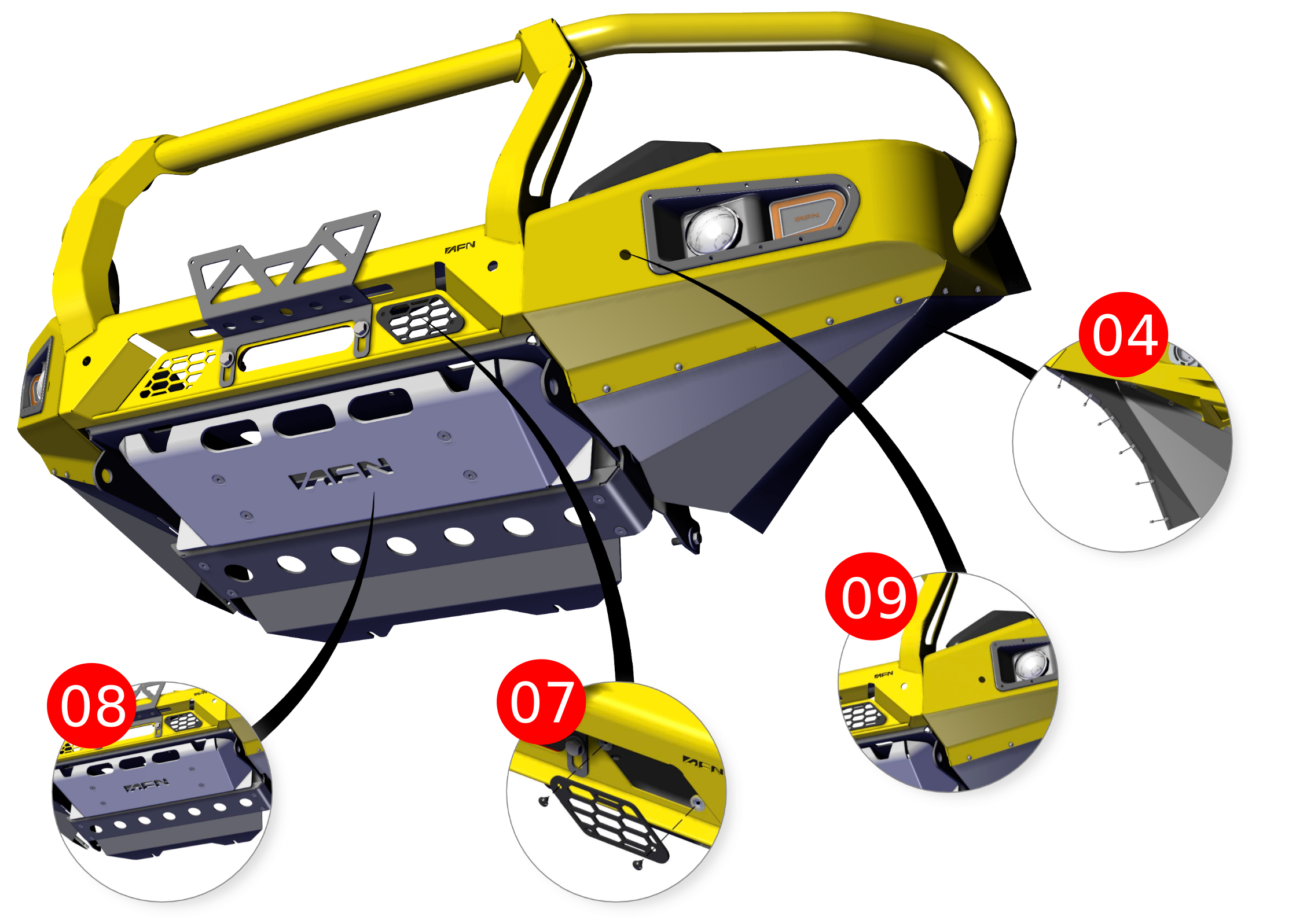

04- Side Plates to match the under guard liner, it is secured to the plates provided by AFN with stainless steel bolts.

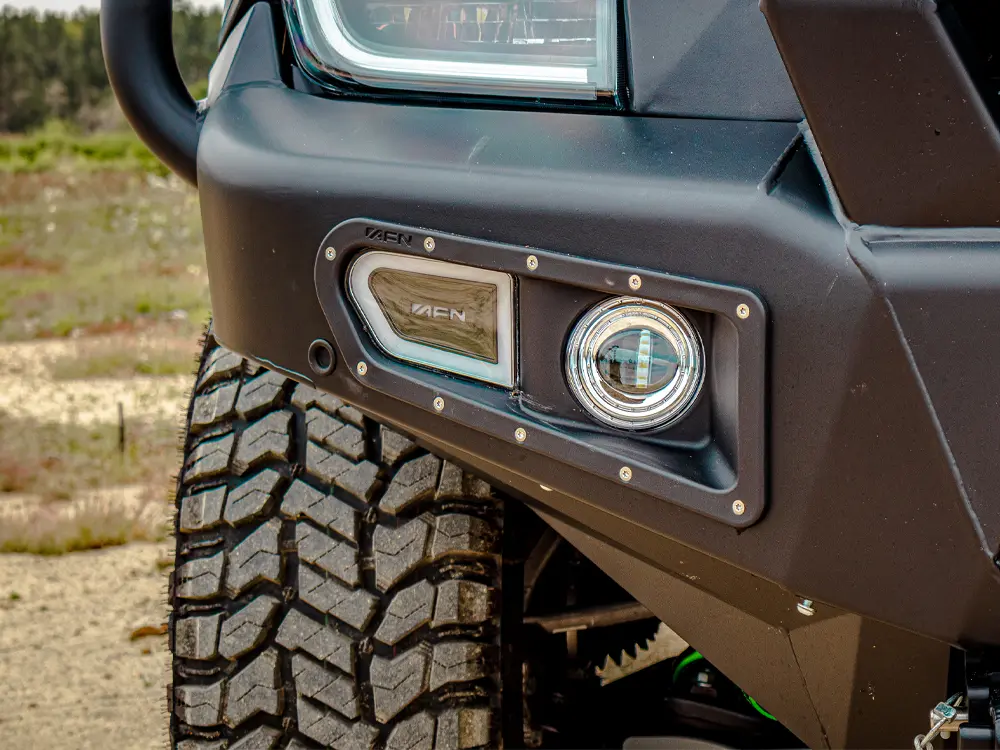

05- Improved mounting brackets for after-market fog lights, the bracket is made out of aluminium to make sure it resists to heavy environment.It also includes LED side traffic lights, as well the DRL (daytime running light) - IP69.
06- Custom made OEM grll bracket provided for a Better mount to the OEM grill.
07- Removable mesh to give access for winch clutch.
08- Front skid plate made out of 6mm Aluminium for a heavy protection and light weight. It also includes an extra skid plate made out of 4mm steel to fill the gap and give more protection between Bullbar / Bumper and chassis.
09- Holes provided for parking sensors.
10- Mounting holes for OEM wash water jet for Headlight.
11- Winch craddle with 2 recovery points.

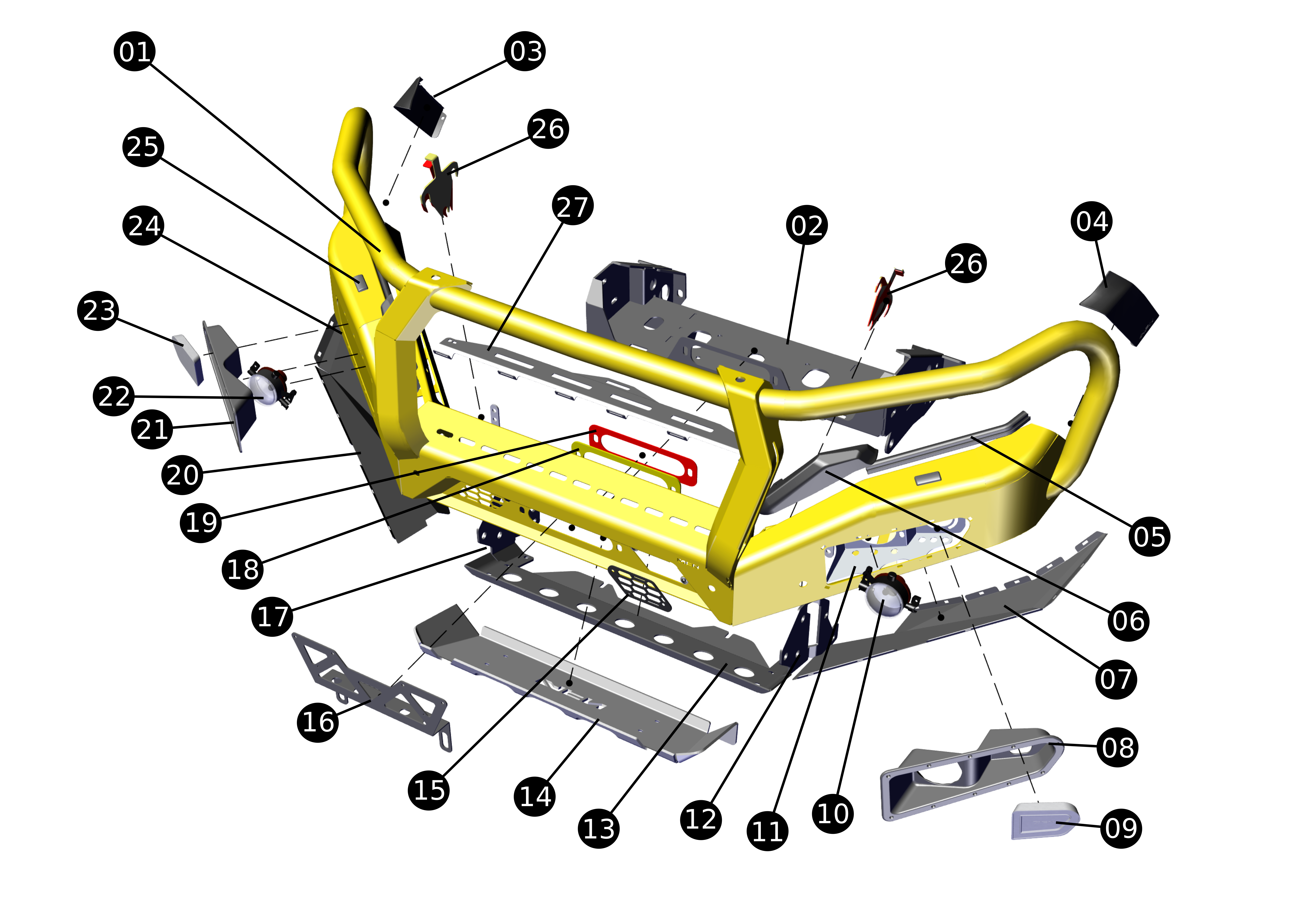

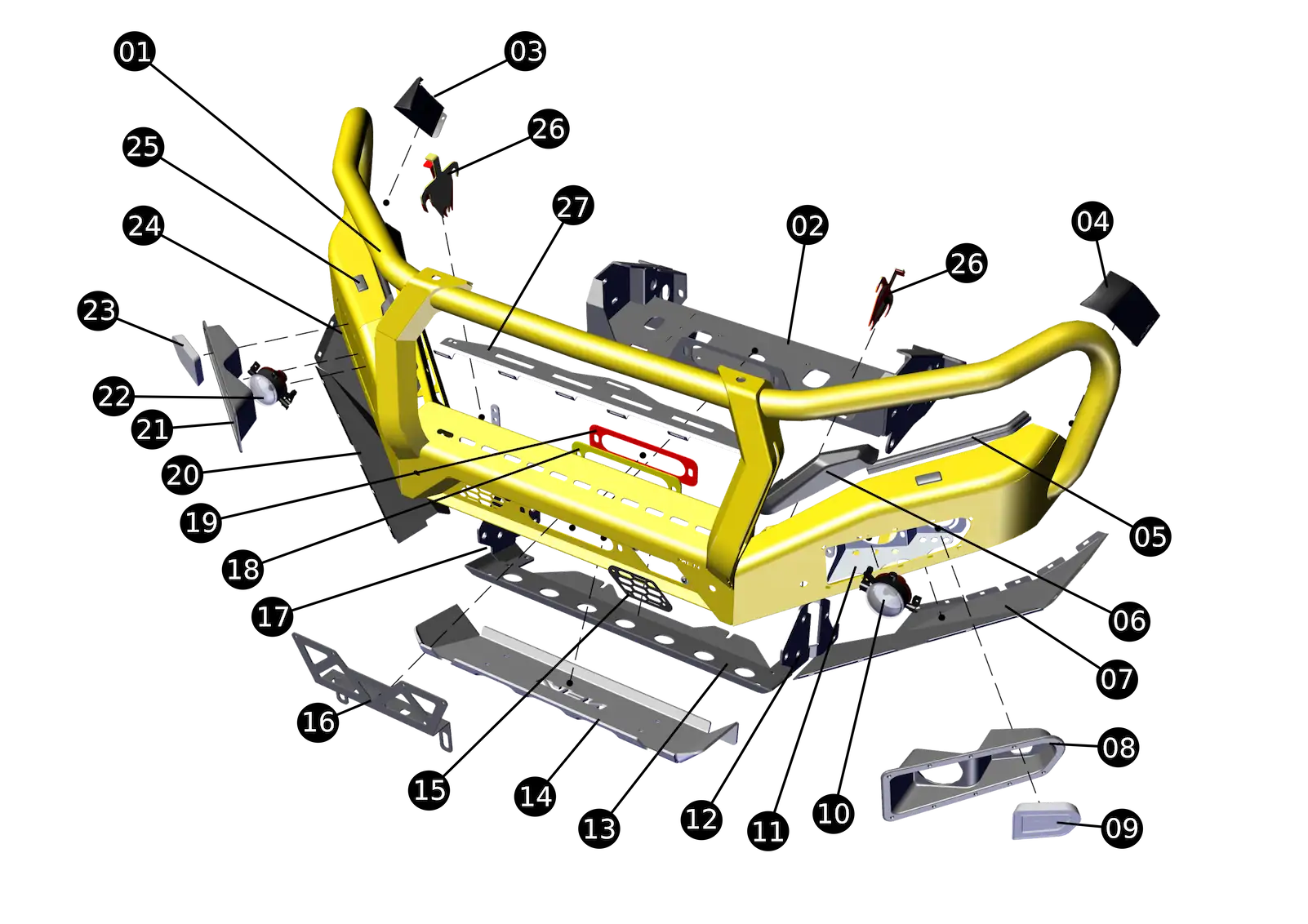

01 - Bullbar Toyota Prado LC 150
02 - Winch Bracket for Toyota Prado LC150 May be opcional
03 - Side Plastic (Right Side)
When removing the OEM bumper it connects the bumper to the lines of the car.
04 - Side Plastic (Left Side)
When removing the OEM bumper it connects the bumper to the lines of the car.
05 - Side Rubber 2x
06 - Right Headlight Rubber
07 - Left Flap 1.5mm Thickness
08 - AFN Headlight Mask (Left Side)
09 - LED Light (Left Side)
11 - Fog Light Bracket (Left Side)
12 - Left Winch Reinforcement
13 - Lower Underbody Protection Iron plate w/ drain apertures, for fast water and dirt removal. 4mm Thickness
14 - Upper Underbody Protection Aluminium Alloy w/ drain apertures, for fast water and dirt removal. 6mm Thickness
15 - Front Winch Access Grid
Removable and allowing Winch Access
16 - AFN Plate Bracket
Compatible with most Winch Roller Fairlead.
17 - Right Winch Reinforcement
18 - Front Winch Bracket Shim
2mm Thickness
19 - Front Winch Bracket Shim
4mm Thickness
20 - Right Flap
1.5mm Thickness
21 - AFN Headlight Mask (Right Side)
22 - Fog Light (Left Side)
23 - LED Light (Right Side) With looping side indicator
24 - Fog Light Bracket (Right Side)
25 - Wash water jet cap
26 - Side Winch Bracket Shim 4x
2mm Thickness | 4mm Thickness
27 - Grill Bracket
Mounted on OEM Grill

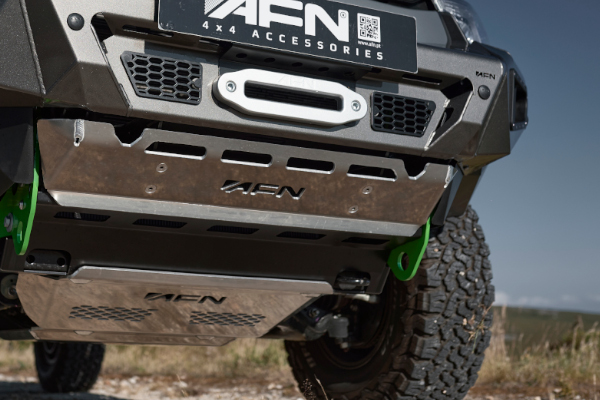

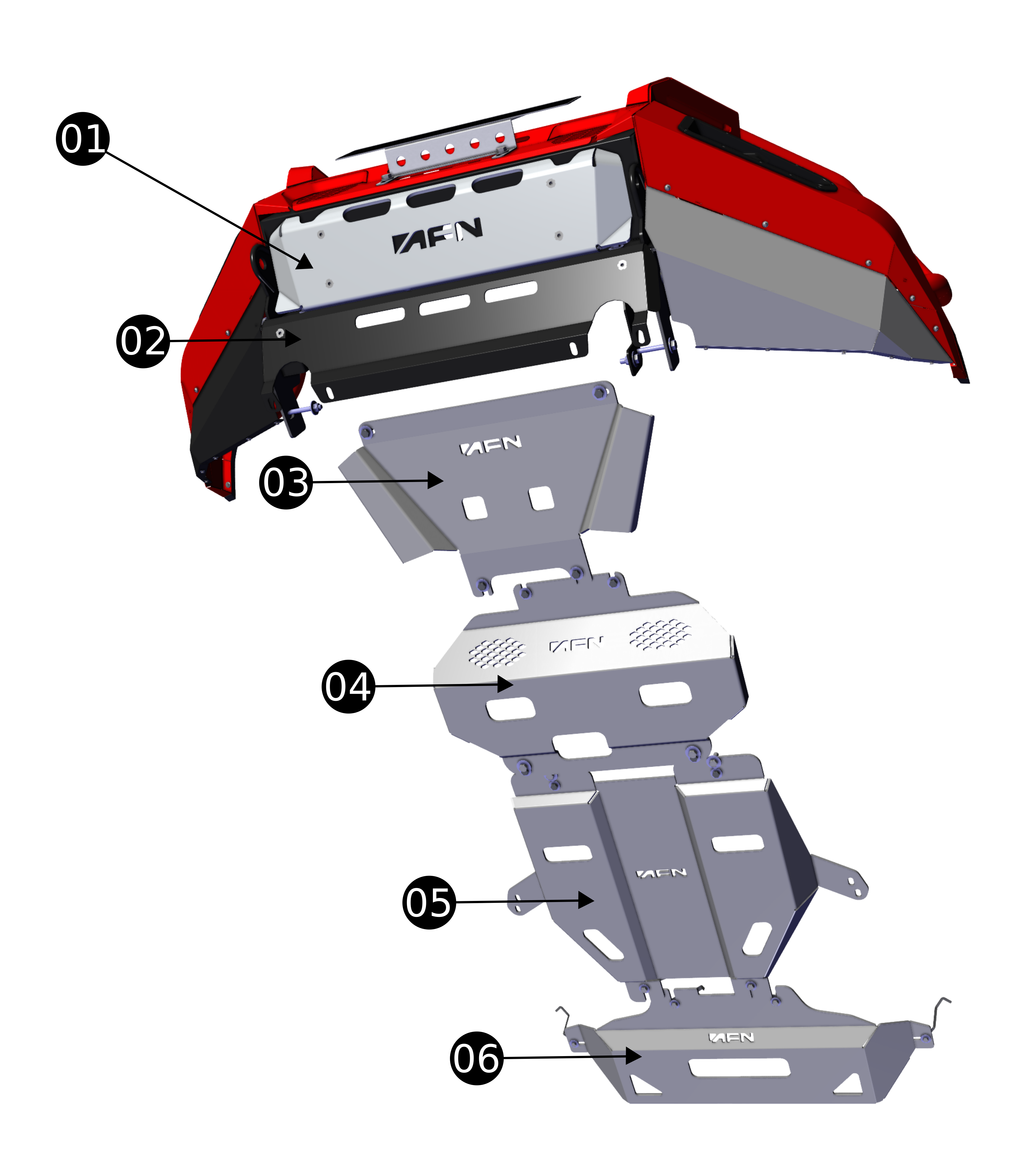

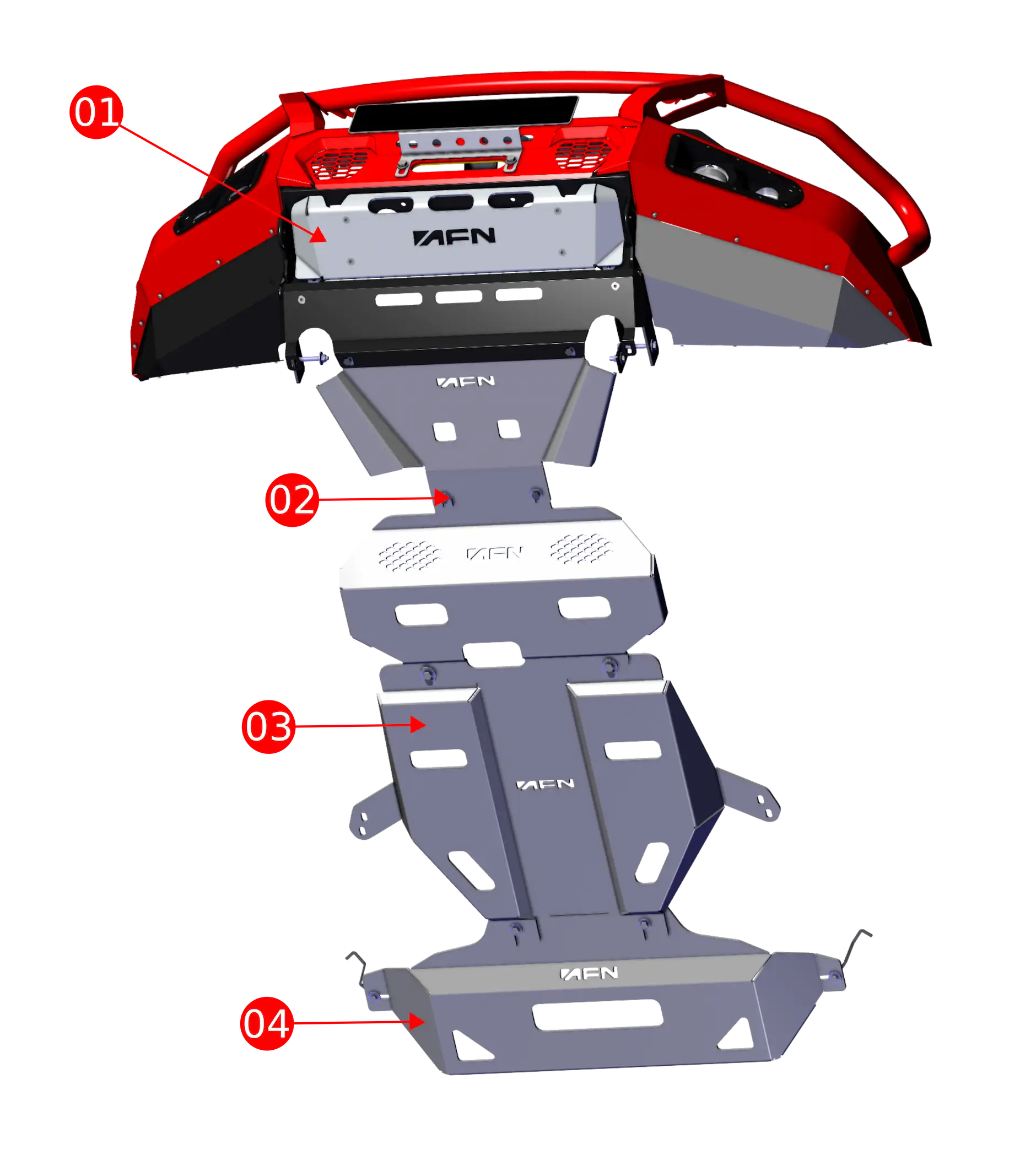

It's a full Underbody enhancement - Why?
All of these Underbody Protections plates combined, makes a full armour underneath your 4x4, which can cover nearly 90% of it.
01- This full armour protects the key components without compromising airflow and durability.
02- Installed to original fitting points - All of our Underbody Protections Plates are installed into the OEM fitting points of the Chassis. There is no need for drilling or welding.
03- Manufactured Thickness: 6mm.
04- ALUMINIUM - There are a lot of advantages in using this type of material in a 4x4 accessory:

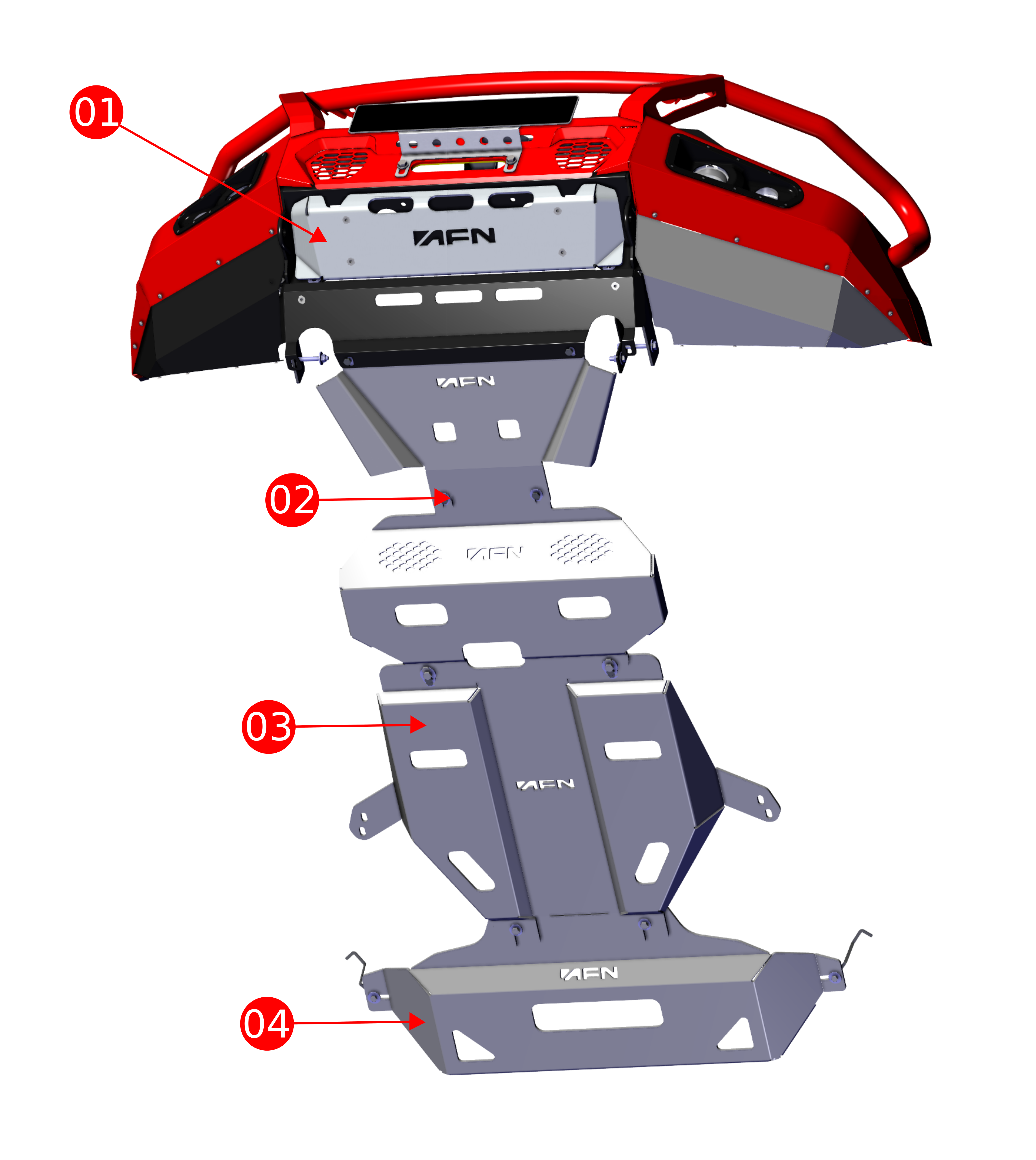

01 - Upper Underbody Protection
Aluminium Alloy w/ drain apertures, for fast water and dirt removal. 6mm Thickness
02 - Lower Underbody Protection
Iron plate w/ drain apertures, for fast water and dirt removal. 4mm Thickness
03 - Front Skid Plate
It fits directly into the AFN Bullbar / Bumper through the Lower underbody Protection.
04 - Sump Guard Skid Plate
05 - Gearbox Skid Plate
06 - Transferbox Skid Plate

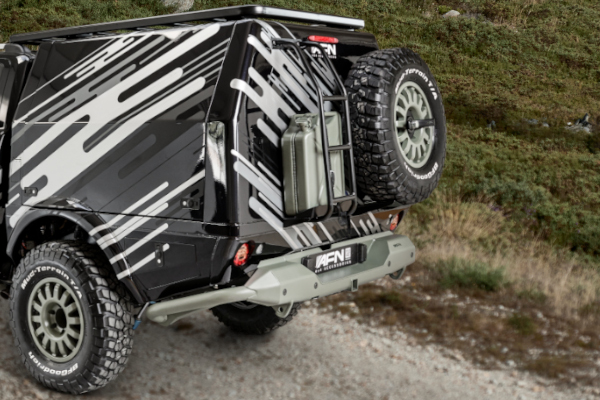

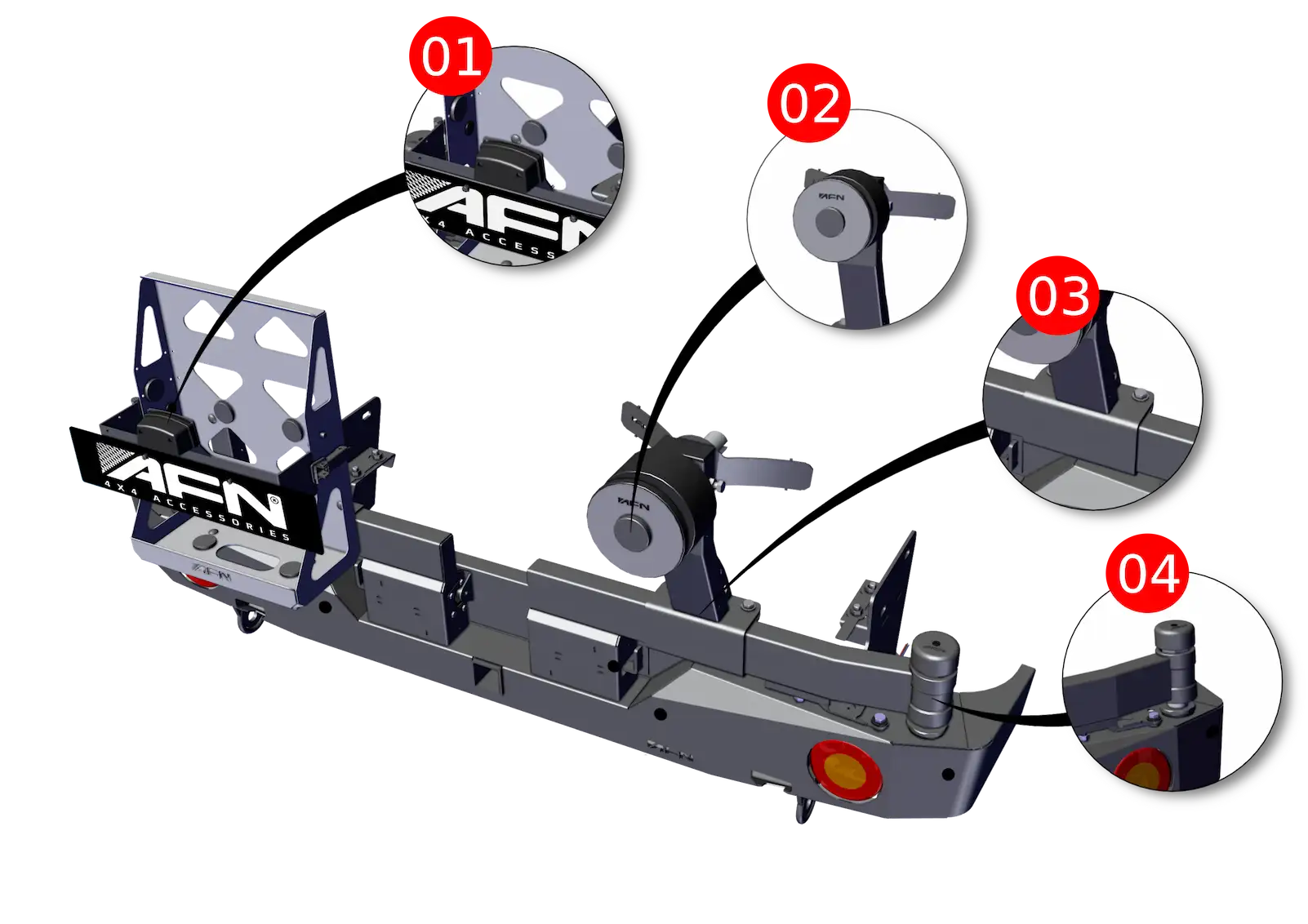

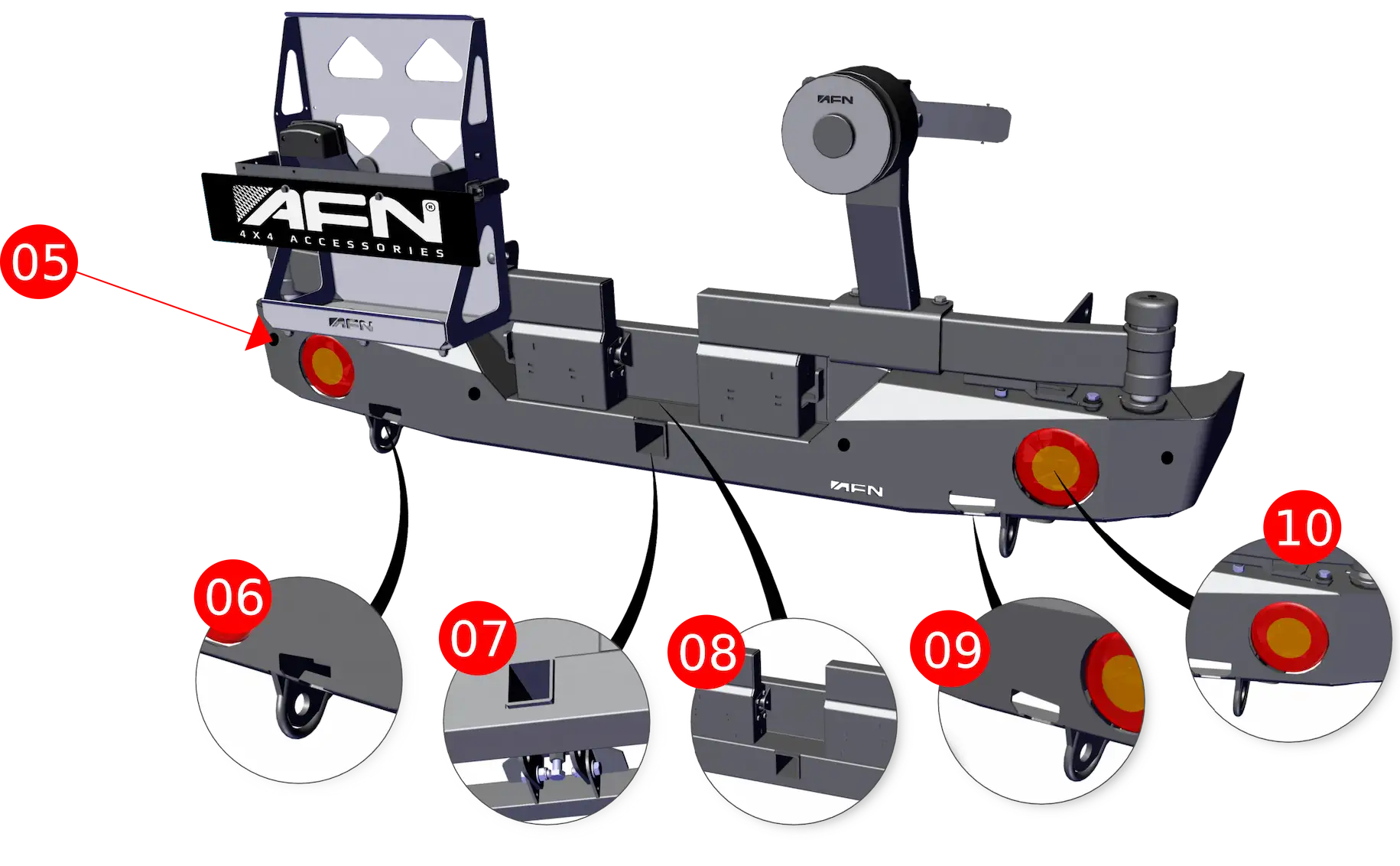

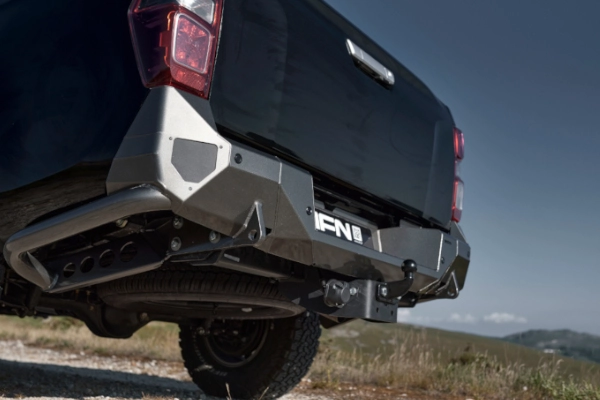

Why should you buy an AFN Rear Bumper?
The Rear Bumper include all the parts needed to make a perfect match between the body and the bumper.
1- Number Plate Bracket is attached on the Jerrycan Holder, with number plate, as shown. (There is also a bracket for the Wheel Carrier).
2- Wheel Carrier - This bracket has a universal wheel carrier, that any size or any offset of the rim/tyre can be used.
3- Versatile - Every Rear Bumper can be customed according to the customer preferences. (Ex: If the customer prefers two Jerrycan Holders or two Wheel Carriers, it’s possible to use, because AFN uses a bolt system instead of a welding system.
4- Bearings. Both arms uses double bearings to be more accurate and to be more reliable. Has a opening of 100º.
5- Holes provided for parking sensors.
6- 2 recovery points incorporated on the Bumper.
7- Incorporated tow hitch.
8- Small step access to the top of the bed.
9- 2 Hi-lift reinforced points in order to use the Hi-lift jack for extreme situations.
10- Improved mounting brackets for after-market tail LED Light, includes brake stop lights, side traffic lights, as well the low beam.

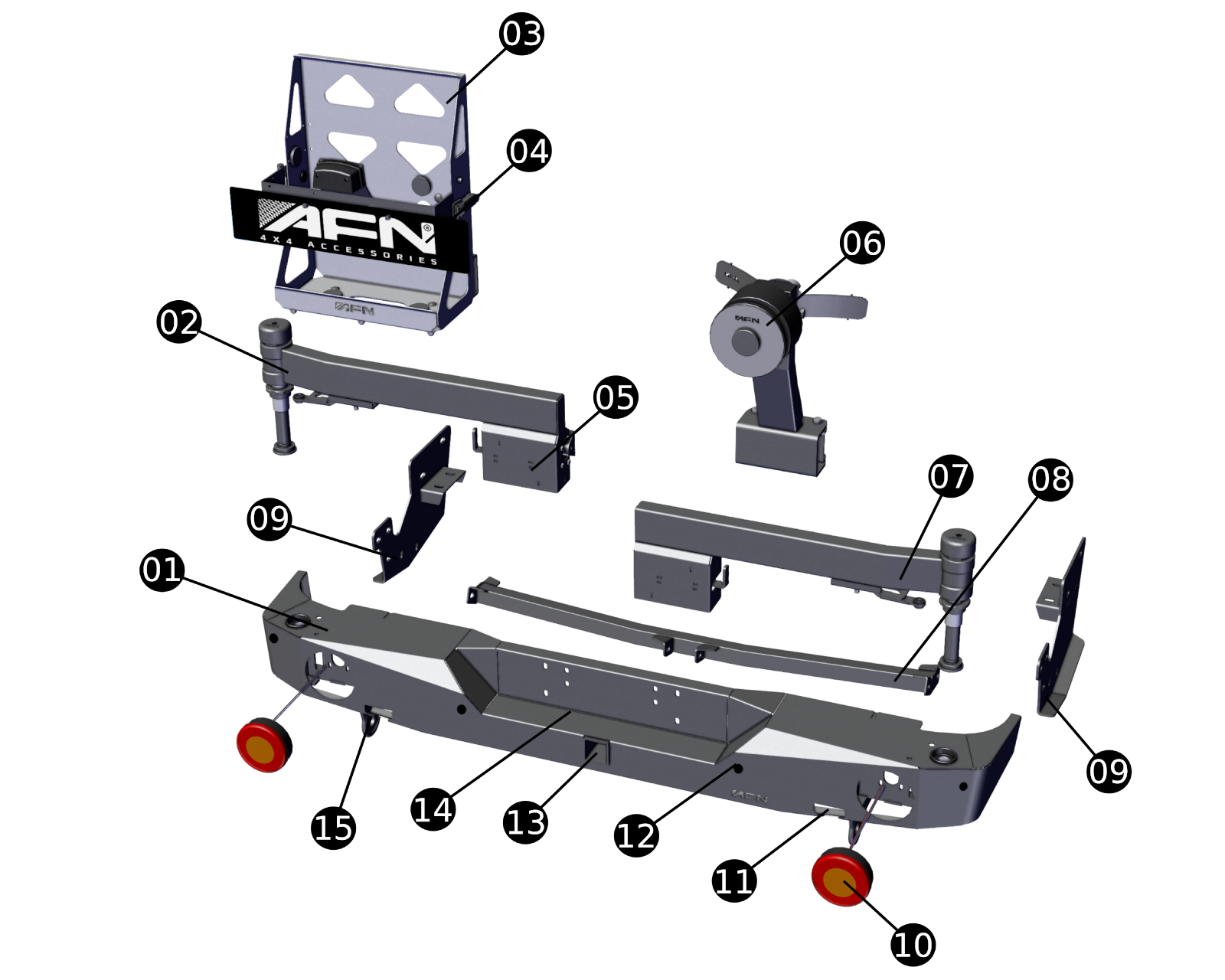

01 - Rear Bumper w/ Trailer Hitch Ford Ranger
02 - Left Arm
-Can be use the wheel carrier or jerrycan
03 - Jerrycan Holder - 20L Jerrycan
04 - Number Plate Bracket
-Number Plate Bracket is attached to also includes a small light. A different be used for the wheel carrier.
05 - Strong Arm Locking System.
06 - Wheel Carrier
-It can also move along the arm to suit size.
07 - Right Arm
-Can be use the wheel carrier or jerrycan
08 - Extra Reinforcement for tow hitch.
09 - Brackets to hold the bumper to the chassis.
10 - LED Lights - includes brake stop lights, side traffic lights, as well the low beam.
11 - 2 Hi-Lift reinforced points in order to use jack for extreme situations.
12 - Holes provided for parking sensores.
13 - Incorporated tow hitch.
14 - Small step access to the top of the bed.
15 - 2 Recovery Points incorporated on the bumper.
